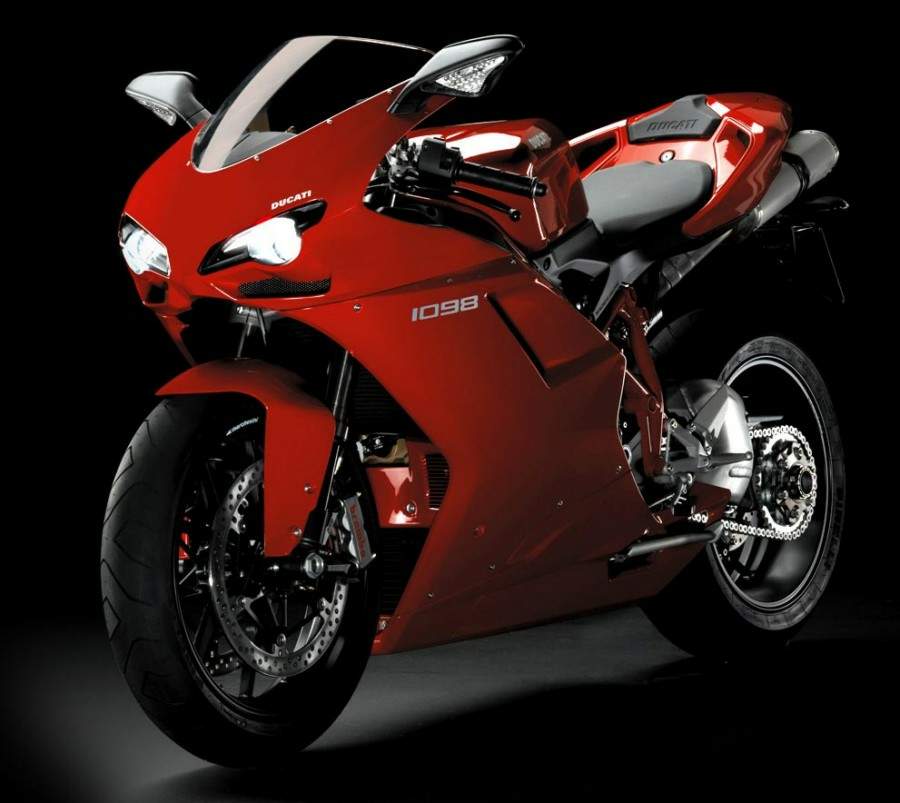

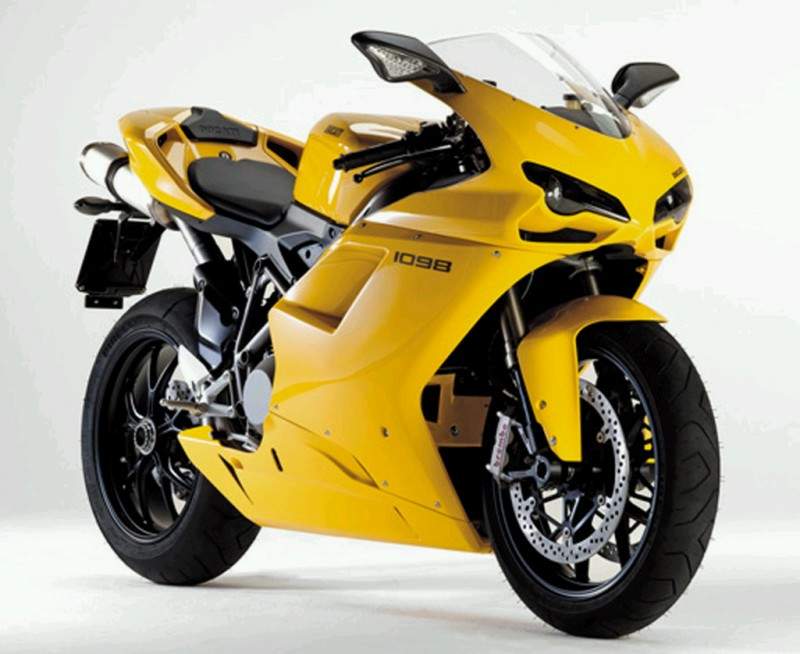

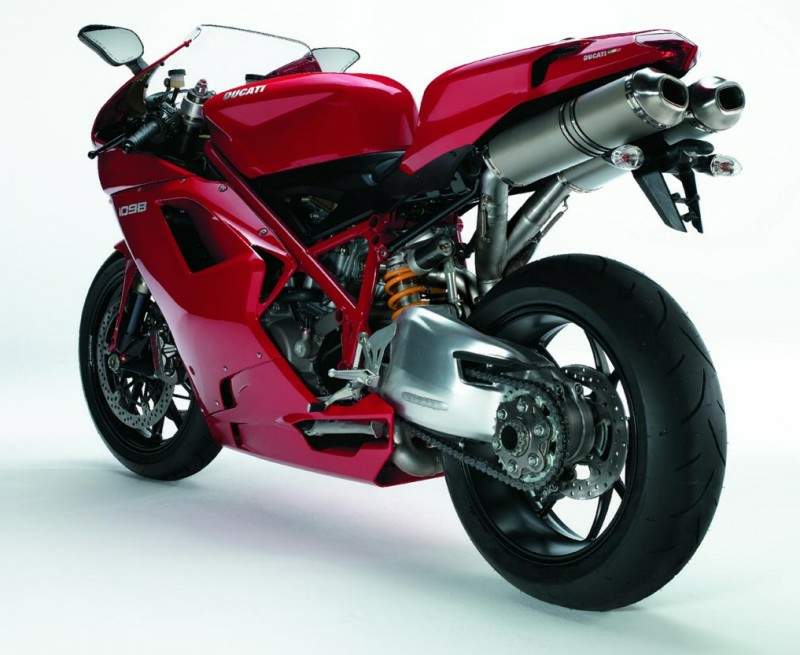

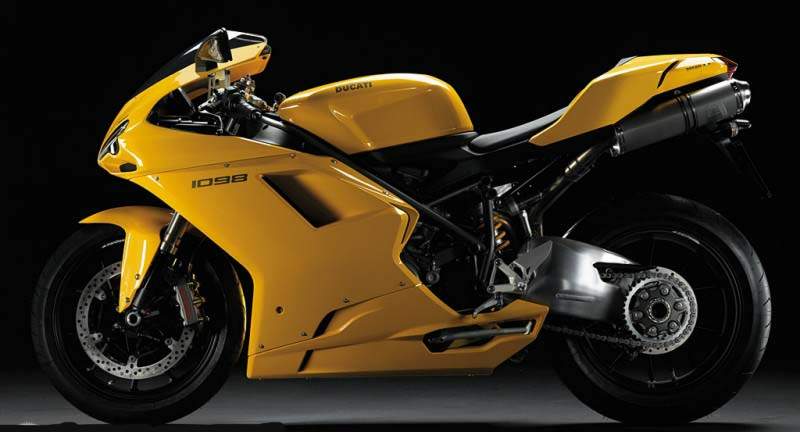

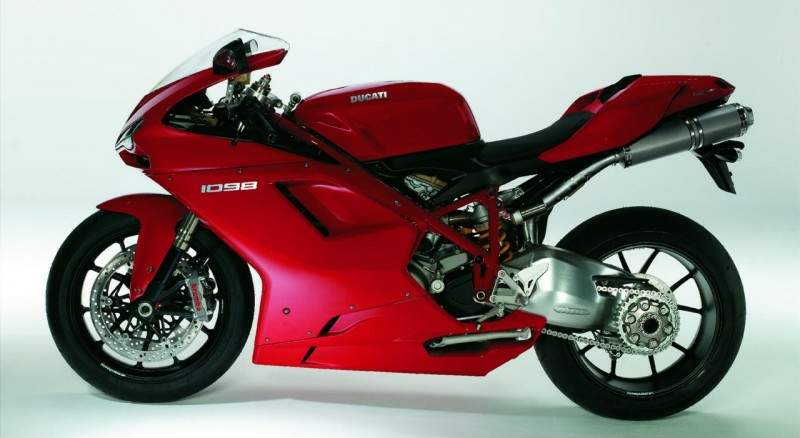

2007 Ducati Superbike 1098
Ducati 1098
| Make Model | Ducati 1098 |
| Year | 2007 |
| Engine | Four stroke, 90� �L� twin cylinder, DOHC, desmodromic 4 valves per cylinder |
| Capacity | 1099 cc / 67.1 cu in |
| Bore x Stroke | 104 x 64.7 mm |
| Cooling System | Liquid cooled |
| Compression Ratio | 12.5:1 |
| Lubrication | Wet sump |
| Engine Oil | Synthetic, 20W-50 |
| Induction | Marelli electronic fuel injection, elliptical throttle bodies |
| Exhaust | Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers |
| Ignition | Digital CDI |
| Starting | Electric |
| Max Power | 119.3 kW / 160 hp @ 9750 rpm |
| Max Torque | 122.4 Nm / 12.5 kgf-m / 90.4 lb-ft @ 8000 rpm |
| Transmission | 6 Speed |
| Final Drive | Chain, front sprocket 15; rear sprocket 38 |
| Primary Drive | Straight cut gears, Ratio 1.84:1 |
| Gear Ratios | 1st 37/15, 2nd 30/17, 3rd 28/20, 4th 26/22, 5th 24/23, 6th 23/24 |
| Frame | Tubular steel Trellis frame in ALS 450 |
| Front Suspension | Showa 43mm with TiO fully adjustable upside-down fork |
| Front wheel travel | 120 mm / 4.7 in |
| Rear Suspension | Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
| Rear Wheel Travel | 127 mm / 5.1 in |
| Front Brakes | 2 x 330mm Discs, 4 piston calipers |
| Rear Brakes | Single 245mm disc, 2 piston caliper |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/55 ZR17 |
| Rake | 24.3� - 24.5� |
| Steering angle | 28.5� - 28.5� |
| Dimensions | Length 2100 mm / 82.6 in Height 1100 mm / 43.3 in |
| Wheelbase | 1430 mm / 56.3 in |
| Seat Height | 840 mm / 32.2 in |
| Dry Weight | 173 kg / 381 lbs |
| Fuel Capacity | 15.5 L / 4.1 US gal / 3.4 Imp gal |
| Standing � Mile | 10.9 sec / 213.2 km/h / 132.5 mph |
| Standing 1000 m | 20.3 sec / 250.0 km/h / 155 mph |
| Top Speed | 273.5 km/h / 169.9 mph |
The 1098 has the soul of a race bike, pure and simple. The riding position encourages the rider to mould to the sleek lines of the tank and seat: man and machine are made one. It transmits the quality and character of contact between road surface and tire, it signals the way the chassis will react next and responds instinctively to rider commands.
Satisfying all the senses, the throaty roar of the twin under-seat exhausts are synchronized with the howl of the elliptical throttle bodies providing a fitting fanfare for the new 1098 Testastretta EVOluzione engine. The huge 104mm bore and all-new cylinder head design unite to produce an awesome 160hp and an arm-wrenching 90+ lb-fts of torque. Developed together with Ducati Corse, the 1098 is a masterpiece of incredible performance and innovation.
The Superbike is available in two versions: the awesome 1098, and for those who demand the ultimate in performance with the very best suspension, lightweight wheels and components, the 1098 S.
Ducati Superbikes, designed, engineered and built in our Bologna, Italy factory, have always represented the pinnacle of Ducati motorcycle technology and racing success. For Ducati, racing and winning are a way of life and a way of thinking for our designers, engineers and everyone at the factory. The unique engineering solutions they embrace are proven on the race track, where the only way to the winner's circle is with technical superiority and dependable performance.
Motorcycles are the only thing that Ducati designs, develops and manufactures � they are our single motivation � the new 1098 and 1098 S Superbikes crystallize the essence of Ducati. They are in form and function the culture and product of a company dedicated to engineering excellence and winning performance.
Simply claiming superior performance and technical innovation is not enough. Ducati backs it up with results. Ducati has dominated World Superbike racing, winning 12 of the last 16 World Championships and taking the Manufacturers� Trophy 14 times since 1990. Furthermore, Ducati has won more individual World Superbike races than all other manufacturers combined. The results speak for themselves.
Engine
The new Testastretta EVOluzione engine is the crowning glory of Ducati�s development and perfection of the L-Twin engine. World Superbike dominance for the last 15 years is the result of continual commitment to twin-cylinder technology and the 1098 Testastretta EVOluzione, the most powerful twin-cylinder production engine in history, is a fitting reward to our engineers� continued ingenuity.
The 1098 engine is immediately recognizable by its completely new compact cylinders and cylinder heads. Other 1098 innovations and revisions are less obvious as they reside inside the EVOluzione�s engine cases, but whether external or internal, every new development was conceived to create a lighter, more efficient, more powerful and ultra-compact engine for the new generation of Ducati Superbikes.
The 1098 capacity is a result of a significant increase in the bore and stroke of the EVOluzione motor. Highly �over-square�, it now sports a big 104mm bore and a relatively short 64.7mm stroke. To optimize the benefits of the new, big Ducati Twin, the cylinder heads have been completely redesigned and, when combined with advanced MotoGP induction technology, enable even the standard specification 1098 to produce more power than the previous extreme Testastretta �R� engine.
The EVOluzione features a reduction in the angle between intake and exhaust valves allowing highly efficient, straight intake ducts and newly shaped combustion chambers that contain racing size �R� valves (42mm inlet, 34mm exhaust), operated by radical �R� derived camshafts. The new cylinder heads also benefit from fewer components and include magnesium covers to achieve a staggering weight-saving of over 3kg (6.5+lbs).
After optimizing the EVOluzione cylinder heads, engineers then focused upon releasing the potential of the new design by feeding them with MotoGP-derived elliptical throttle bodies. With a 30% increase in air flow over conventional throttle bodies, the new elliptical shape contributes an incredible 5hp increase to the record-breaking motor.
The Testastretta EVOluzione is the lightest Ducati Superbike engine ever, thanks to close scrutiny of every engine component. A total of 5kg (11.1lbs) has been saved by reducing the weight of many components, including transmission gears and the gear selector drum as well as the oil pump and primary gears.
The Testastretta EVOluzione�s increase in power is protected by a highly efficient oil cooler with increased surface area and an advanced coolant radiator assisted by lightweight, high flow electric fan assemblies. The compact and intricate design of the cooling system integrates perfectly with the 1098�s wind-cheating aerodynamics and sleek lines.
Finally, the 1098 is complemented by an all-new exhaust system. Significantly lighter, it has been engineered with a power-increasing symmetrical 2-1-2 layout that uses 52mm-57mm diameter tubing with wall thickness reduced by 30% to 0.8mm (.030in). The system terminates with Ducati�s trademark twin under-seat silencers, delivering that unmistakable signature sound of the big bore 90� L-Twin.
Chassis
The 1098 chassis and suspension have received the same detailed study and performance first priority approach. The goal was to achieve considerable weight saving while building-in strength and rigidity to manage the new high-powered Testastretta EVOluzione engine. Each and every component not only contributes to achieving superior road holding and stability, but when assembled, become a system with value far greater than the sum of all its parts.
Trellis Frame
Developed in cooperation with Ducati Corse, the 1098 Trellis frame has been designed with a simplified tube layout featuring main section tubes increased in diameter from 28mm to 32mm, while being reduced in thickness from 2mm to 1.5mm. The result is a 14% increase in rigidity and a weight saving of 1.5kg (3.3lbs).
Single-sided Swingarm
Our engineers were encouraged to re-think the construction technique of the 1098�s unique single-sided swingarm. The solution was to produce the main operational components using individual aluminum castings so as to ensure strength around the pivot points, wheel hub and suspension links, with fabricated aluminum sections used to complete the construction into a single, beautifully engineered component.
Rear Suspension
Highlighting the way in which individual components are influenced by each other, the new lightweight Trellis frame and single-sided swingarm have enabled a more compact and further weight-saving rear suspension linkage system that features separate lower pick-up points for the push-rod and suspension unit.
This �tandem� design effectively reduces stress around the linkage pick-up area of the Trellis frame. Working together with this highly efficient linkage is a fully adjustable Showa single shock for the 1098 and an incredible �hlins shock for the 1098 S. A vitally important feature of the 1098�s rear suspension system is the ability to adjust rear ride height independent of spring pre-load and other suspension settings, critical when seeking the perfect set-up for personal riding style or track conditions.
Front Suspension
The fully adjustable 43mm Showa forks with a special low friction Titanium Oxide-treated sliders on the 1098, and spectacular 43mm �hlins with low friction Titanium Nitride sliders on the 1098 S, both feature radial Monobloc caliper mountings. The unique look of these mountings further underlines the no-compromise racing specification of the 1098. Both front suspension solutions are professionally track-tuned and offer superior road holding, deliver superior feedback, and help every rider to be more confident and in control.
Brakes - Monobloc Calipers
With a Superbike as capable as the 1098, superior stopping power is fundamental. The 1098 is the first production street bike to use Brembo�s Monobloc caliper racing technology. The M4-34 calipers are machined from a single piece of alloy, vs. the bolt-together construction of conventional calipers. The Monobloc design has much higher rigidity and resistance to distortion during extreme braking, and therefore gives a much more precise feel at the brake lever.
The 1098 also introduces for the first time on a Ducati, big 330mm discs which, when matched to the Monobloc calipers, achieve spectacular braking power. Despite the larger diameter, their weight has not increased due to the use of racing-style narrow braking surfaces. The use of Monobloc technology combined with the legendary stability of Ducati�s Trellis frame and the 1098�s overall weight savings has made world championship level brake performance available for the road.
Super Lightweight Wheels
The weight saving of 250g achieved on the front wheel substantially reduces the moment of inertia and enhances the 1098�s change of direction and braking performance. The rear wheel is just as impressive with a complete redesign for its single-sided swingarm application that has resulted in a reduction of over 1kg compared with traditional Ducati single-sided swingarm fitments.
Both the 1098 and 1098 S benefit from the lightweight Marchesini Y-shaped spoke wheels, but the �S� goes even further by using machine finished forged-aluminum, a special process normally reserved for the production of race wheels. Another first for Ducati is the mounting of 190/55 rear tires, our widest ever, and the new standard for traction and control.
Aerodynamic Bodywork
Carefully designed not only for aerodynamic efficiency but also to hug the sleek lines of the chassis, the 1098 enables the rider to blend effortlessly into the race-oriented riding position. Great care has been taken in the design of the air supply ducts so to ensure efficient air-flow through radiator and oil coolers as well as provide ample air delivery to the airbox feeding the powerful new Testastretta EVOluzione engine.
Moulded in lightweight Terblend, the bodywork�s form becomes a considerable contributing factor to the overall performance of the machine by helping reduce weight even further while allowing the rider to effortlessly �tuck in� from the wind stream and turbulence to achieve maximum straight-line track speed.
Electronics and Innovation
Desmosedici-style digital instrumentation is taken from Ducati�s MotoGP GP7 project. This pure racing, minimalist solution by Digitek has no switches or buttons to compromise its clean lines.
Instead, information additional to the default read-outs is managed by handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The default read-out presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. The instrument display also doubles as a control panel for the activation of the data acquisition system as well as listing lap times recorded by using the high-beam flash button as a stopwatch.
Data Acquisition
With the purchase of the Ducati Data Analyser (DDA), which includes PC software, a USB-ready data retrieval card and instructions, owners are ready to review and analyze the performance of the 1098 and its rider, and make comparisons between various channels of information. The DDA is available from Ducati Accessories, and is supplied as standard equipment on the 1098 S.
Normally used on race bikes only, the system records numerous channels of data including throttle opening, vehicle speed, engine rpm, engine temperature, distance traveled, laps and lap times. The system also automatically calculates engine rpm and vehicle speed data so as to also display gear selection as an additional channel of information. At the end of a ride or track session, up to 2mb (approximately 3.5 hours) of data can be downloaded to your PC ready to compare, analyze and get an inside view of you and your 1098�s performance.
Data can be analyzed in graphic form with options to zoom into detail of specific sections. Dragging a trace along a timeline to reveal individual values of the above listed channels enables the user to analyze performance in the same way that data technicians are able in factory teams.
DUCATI 1098 S
The most powerful, lightest L-Twin Superbike in history
The new 1098 S has achieved the status of the highest performance Ducati street bike ever by reducing weight to the max and adding world-class components to an already record-breaking design. If owning the ultimate Superbike is your dream, the �S� is ready to deliver.
Suspension is of the very highest performance standard. The fully adjustable 43mm �hlins FG511 forks, which sport low friction Titanium Nitride fork sliders, respond effortlessly to every imperfection in the tarmac.
Beyond their advanced engineering solutions, one of the most important characteristics of �hlins forks is their ability to communicate the condition and quality of the tire-to-road contact patch, a feature that puts every rider in superior control.
The suspension system is completed and perfectly balanced by using a fully adjustable �hlins 46PRC rear shock with a ride enhancing top-out spring, controlling the single-sided swingarm for outstanding drive, traction and steering precision. The �hlins package is completed with a control-enhancing adjustable steering damper.
The �S� also sets a new standard for lightweight performance. On any sport or race bike, the most effective area to reduce weight is its �unsprung weight�. These are components like tires, brakes and wheels. Lighter wheels have a lower �moment of inertia� that is beneficial with every direction change and application of the brakes.
The 1098 addresses this important area by mounting Marchesini forged and machined wheels, reducing weight by 1.9kg (4lbs). Both front and rear are super lightweight and their benefit is immediately apparent. A red pin-stripe around the front and rear rime denotes their high-tech �S� status. The weight saving is further enhanced with the application of a carbon fiber front fender.
The 1098 S is also supplied with the Ducati Data Analysis system as standard equipment. The DDA package supplied with the �S� version enables the retrieval of data and analysis of data collected from your previous track session or road trip. The DDA package includes software for your personal computer on CD, a data retrieval USB key and instructions.
